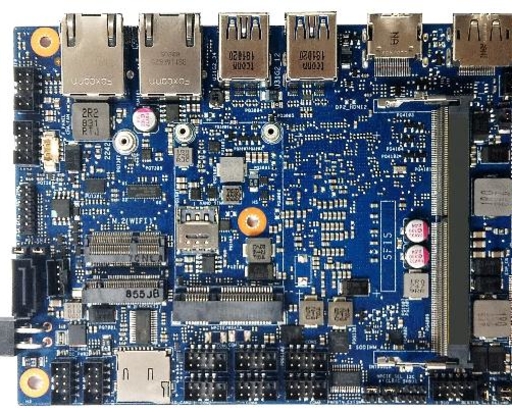

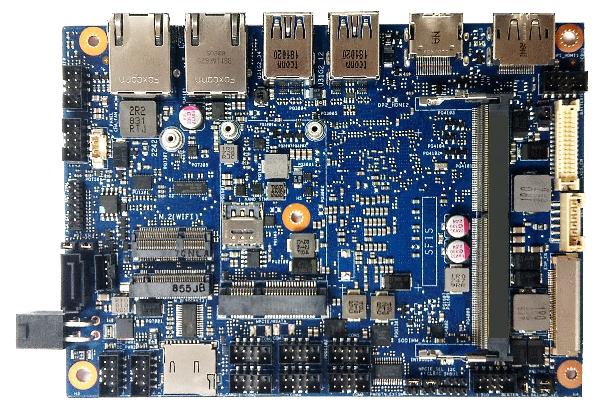

ASUS E393S-IM-AA
kat. č.: E393S-IM-AA
Popis produktu
Chipset:
- Integrated
Processor:
- Intel Atom® x5-E3930 Processor (SoC), 1.3GHz Dual-Core (Burst 1.8GHz), 2MB cache
- Intel® HD Graphics 500
- TDP 6.5W
Memory:
- DDR3L 1866MHz
-
1x SO-DIMM socket, max. 8GB memory
Product features:
- Up to 6 COM ports, includes 2x RS-232/422/485
- Supports 2 display configuration by multiple interface: DP/HDMI/LVDS
- Supports I2C, SMBus and DIO
- Wide temperature range endurance: -40~85°C
Parametry
| Market: | Industrial |
| Form Factor: | 3.5" |
| Power Input: | DC 12-24V |
| Processor: | Intel Atom® x5-E3930 Processor (SoC), 1.3GHz Dual-Core, 2MB cache |
| PCIe/mPCIe/PCI: | 1x Mini PCIe with Nano-SIM socket, 1x M.2 2230 |
| LAN/USB/COM: | 2x RJ45, 4x USB 3.1 Gen1, 2x USB 2.0 onboard support, 6x COM header |
| Rozhraní: | 1x SATA 6Gb/s, 1x M.2 2242 (SATA mode), 1x Micro SD slot onboard |
| Rozměry: | 146 x 105 mm |
| Provozní teplota: | -40 ~ +85°C |
| Typ paměti: | DDR3-1866 |
| DDR: | SO-DIMM |
