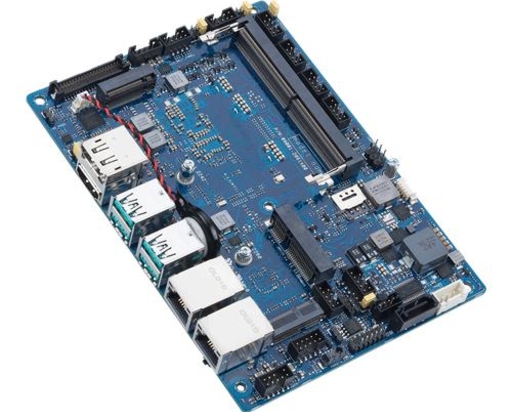

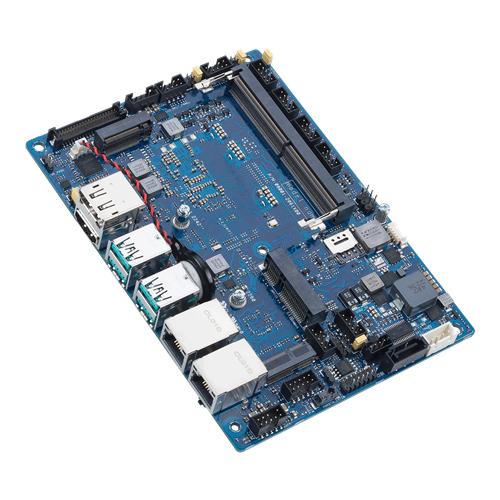

ASUS N200S-IM-AA
kat. č.: N200S-IM-AA
N200S-IM-AA
3.5" form factor
Intel® Processor N200
Rozsah provozní teploty 0~60°C
Dostupnost:
na dotaz
Popis produktu
Procesor:
- Intel® Processor N200, 4 Cores
- Intel Gen 12 UHD Graphics, up to 4K/60 hz
- TDP 6W
Paměť:
- DDR5 4800 MT/s, In-Band ECC (IBECC)
-
1x SO-DIMM socket, max. 16GB memory
Vlastnosti:
- 6x COM, 2x RS-232/422/485 a 4x RS-232, 4x USB3.2 Gen2
- Podpora 3x displejů různého rozhraní: HDMI, DP, eDP/LVDS
- M.2 E-key 2230, M-key 2280/2242, SATA 3.2
- Dual-LAN and Nano SIM
- Rozsah pracovní teploty: 0~60°C
Parametry
| Market: | Industrial |
| Form Factor: | 3.5" |
| Power Input: | DC in 9-36V |
| Processor: | Intel® Processor N200, 4 Cores |
| PCIe/mPCIe/PCI: | M.2 E-key 2230, M-key 2280/2242 |
| LAN/USB/COM: | 6x COM, 2x RS-232/422/485, 4x RS-232, 4x USB3.2 Gen2 |
| Rozhraní: | SATA 3.2, Dual-LAN and Nano SIM |
| Rozměry: | 146 x 105 mm |
| Provozní teplota: | 0 ~ 60°C |
| Typ paměti: | DDR5 4800MHz 16GB |
| DDR: | SO-DIMM |
