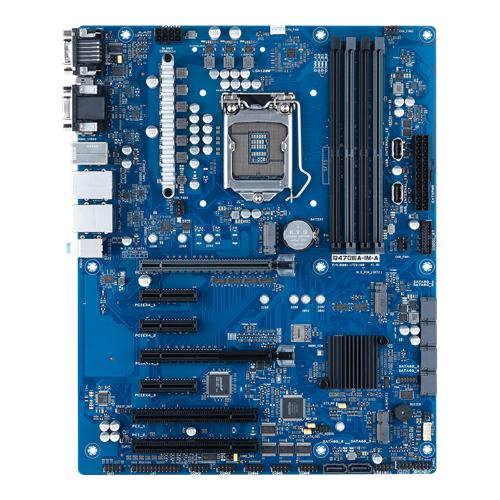

ASUS Q470EA-IM-A
kat. č.: Q470EA-IM-A
ATX, Intel Q470E
LGA1200 10th gen.
3x display, 2x PCIe
Wide temp 0~60°C
Výrobce
Odkazy
Dostupnost:
na dotaz
Poptávka
Popis produktu
Chipset:
- Intel® Q470E
Processor:
- 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron (14nm)
- LGA1200 Socket
- max TDP 125W
Memory:
- DDR4 2933/2666/2400/2133 MHz
-
4x U-DIMM socket, max. 128GB memory
Product features:
- 2x LAN - Intel® i225V (2.5GbE), Intel® i219LM (1GbE)
- Supports up to 3 display configuration by multiple interface: 2x DP / 1x HDMI / 1x VGA
- 1x COM (RS-232/422/485) + 5x COM header (1x RS232/422/485, 4x RS232)
- 7-year longevity supply
- Wide temperature range endurance: 0~60°C
Parametry
| Market: | Industrial |
| Form Factor: | ATX |
| Power Input: | 8pin ATX 12V / 24pin ATX |
| Processor: | 10th Generation Intel® Core™ i9/i7/i5/i3/Pentium/Celeron |
| PCIe/mPCIe/PCI: | 2x PCIe x16, 3x PCIe x4, 1x M.2 2230 (E key), 1x M.2 2242/2260/2280 (M key), 1 x M.2 type 3042/3052/2260/2280 (B key, 4G/5G module) |
| LAN/USB/COM: | 2x RJ45, 3x USB 3.2 Gen2 Type A, 1x USB 3.2 Gen2 Type C, 2x USB2.0, 2x USB header (2x USB 3.1 Gen1 / 2x USB 2.0), 1x COM + 5x COM headers, 1x PS/2 |
| Rozhraní: | 6x SATA 6Gb/s, RAID 0/1/5/10 |
| Rozměry: | 305 x 244 mm |
| Provozní teplota: | 0 ~ +60°C |
| Typ paměti: | 2x DDR4-2933/2666/2400/2133 |
| DDR: | U-DIMM |
