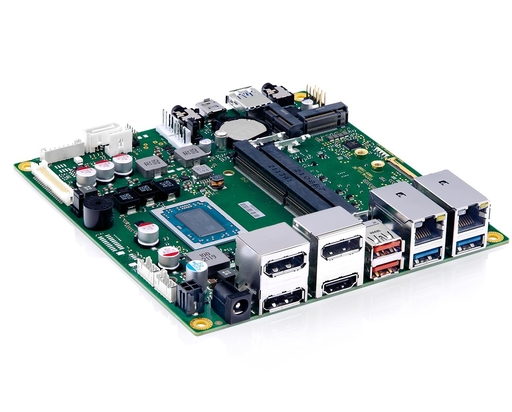

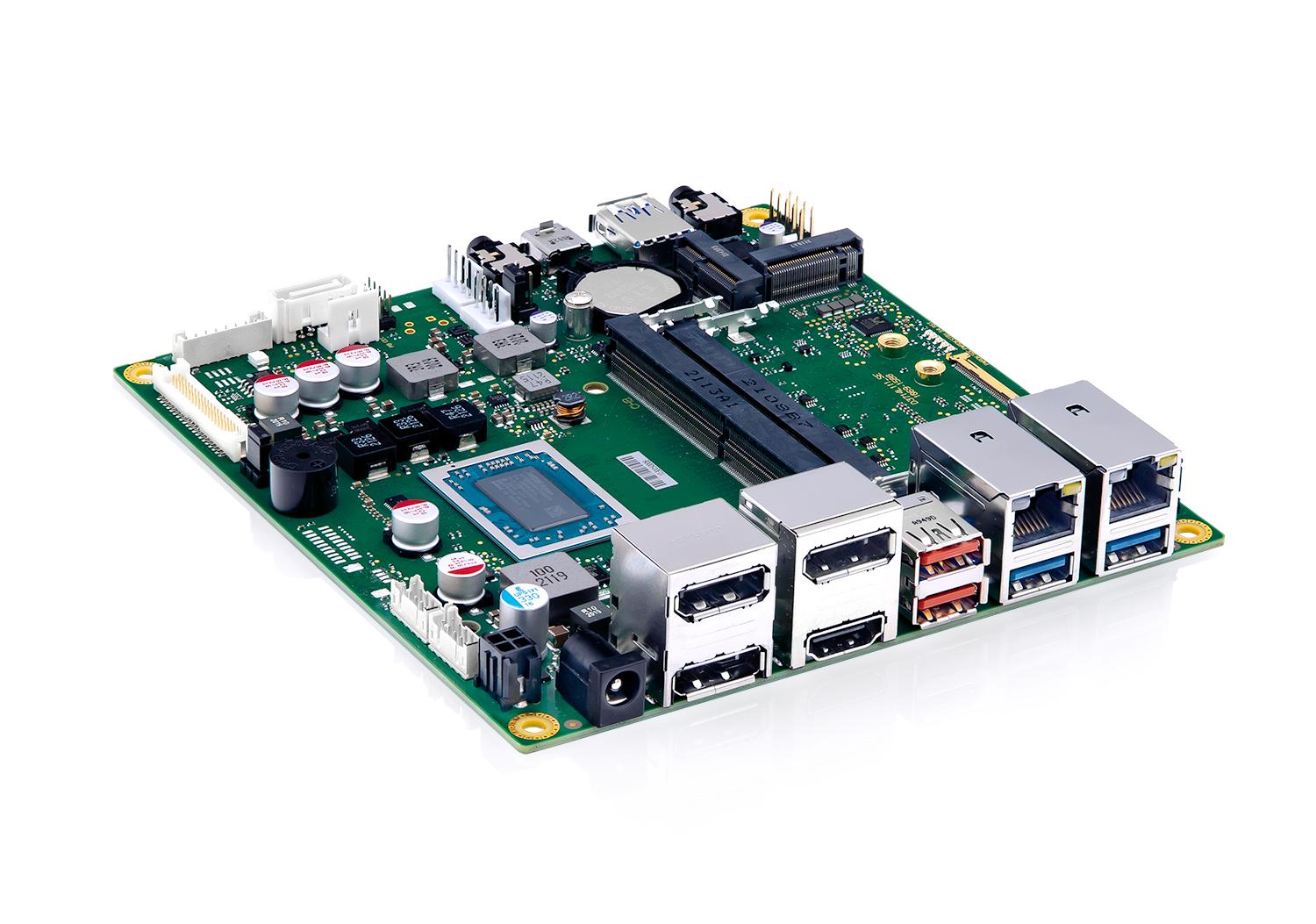

D3714-V2 mSTX Kontron

Procesor:

• AMD Ryzen™ Embedded V1605B Quad-Core 2.0GHz (base) / 3.6GHz (boost), 25W TDP (15W/12W)

Grafické rozhraní:

• AMD Radeon™ Vega Graphics @1.1GHz, 8x Compute units
• up to 4 displays
• 3x DPP V1.4 incl. DP++ support
• 1x HDMI V2.0b
• 1x embedded DP (eDP V1.3; supporting 4K resolutions)
• 1x Dual-Channel 24bit LVDS

Paměť:

• DDR4 2400 SDRAM
• 2x SO-DIMM socket, max 2x 16GB

Vlastnosti:

• Following max. display combinations are supported: 1x DPP + 1x HDMI + 1x LVDS + 1x eDP // 2x DPP + 1x HDMI + 1x LVDS // 2x DPP + 1x HDMI + 1x eDP // 3x DPP + 1x HDMI
• HD Audio onboard (Realtek ALC256)
• Dual GbE LAN onboard
• 1x RS232/422/485 (by header); 1x RS232 (by header)
• GPIO (by header)
• AMD integrated TPM V2.0 onboard
• Designed for fanless operation @ -10°C - 50°C (-10°C - 60°C with forced cooling)
• 3 level HW Watchdog onboard (BIOS POST/BIOS Boot/OS)
• External/Internal DC-In (DC Jack/4-Pin Micro-Fit) DC Input 12 V or 19-28 V, max. 5 A/65 W (external DC-In), max. 8 A/100 W (internal DC-In)

Využití:

• Casino Gaming, Průmyslové počítače, Displeje pro zdravotnické účely

Recommended accessories:

• Active cooler

• Passive cooler

• Low profile active cooler
