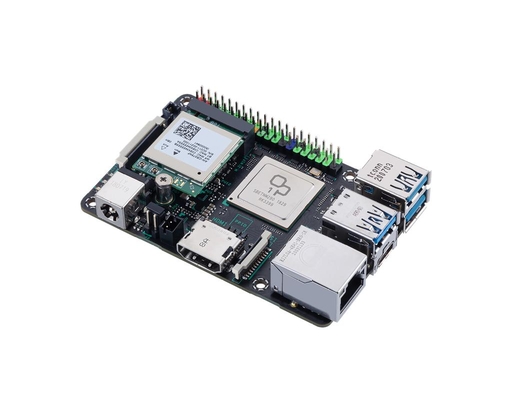

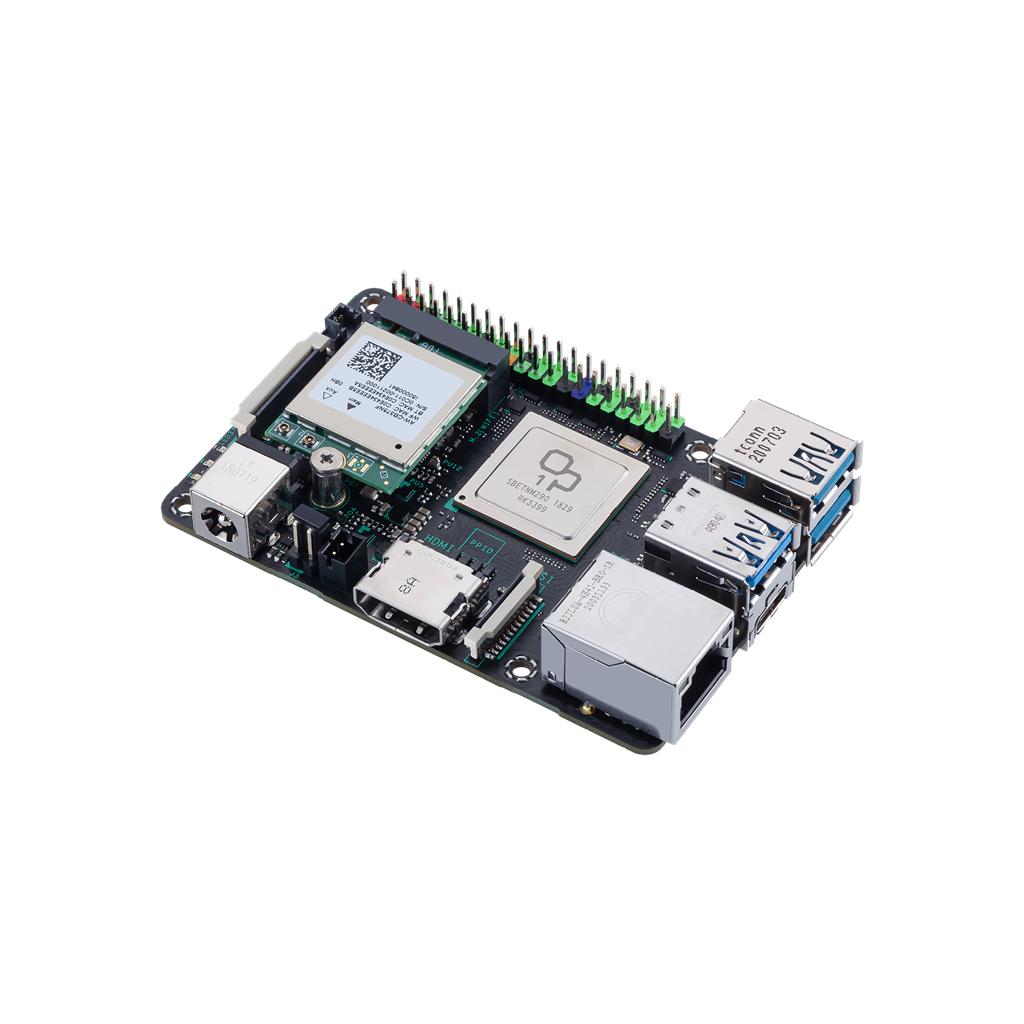

Tinker Board 2

Chipset:

• integrovaný Rockchip

Procesor:

• Rockchip 6-Core RK3399 SoC, TDP 6.5W
• Dual-core Arm® Cortex®-A72 @ 2.0GHz
• Quad-core Arm® Cortex®-A53 @ 1.5 GHz
• Integrated Graphics Processor ARM® Mali™-T860 MP4 GPU @ 800 MHz

Paměť:

• 2GB Dual Channel LPDDR4

• Slot na Micro SD(TF) karty

Vlastnosti:

• 1x M.2 - WiFi 802.11 a/b/g/n/ac wireless & BT 5.0, 2T2R
• Realtek RTL8211F-CG GbE LAN
• Podpora 2x displej 4K UHD
• 3x USB 3.2 Gen1, 1x USB 3.2 Gen1 Type-C OTG (DP Alt Mode), 1x HDMI, 1x 40-pin GPIO header, 1x 22pin MIPI DSI (4 lane), 1x 15-pin MIPI CSI-2 (2 lane)
• podpora OS - Linux Debian 9 / Android 10
• 1x 12~19V DC Power Input Jack (5.5/2.5 mm)

Využití:

• Video Entertainment, audio, media playback, gaming
