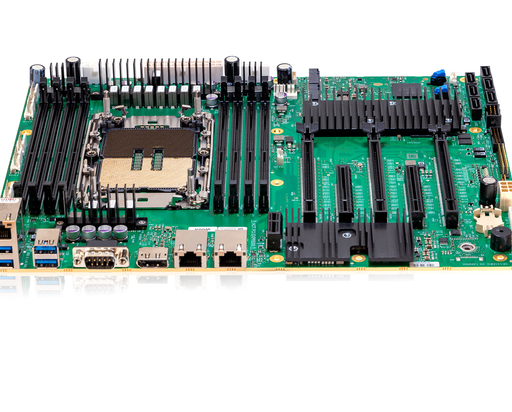

K9051-C ATX Kontron
kat. č.: 1070-9666 Novinka
K9051-C je serverová průmyslová deska od společností Kontron. Jedná se o ATX formát s podporou CPU Intel 4/5. generace.
- ATX formát
Intel® 4th/5th Generation Xeon® scalable processor
DDR5 RDIMM, až 768 GB
Průmyslová serverová deska
Výrobce
Odkazy
Dostupnost:
na dotaz
Poptávka
Popis produktu
Procesor:
- Intel® 4th/5th Generation Xeon® scalable processor
- Socket LGA4677, max 350W TDP
- Intel C741 Chipset
Paměť:
- 8x RDIMM DDR5 5600 MHz, až 768 GB
- 8x Independent Channels registered, ECC
Vlastnosti:
- 1 DisplayPort 1.1a/1920x1200 32bpp@60Hz ASPEED AS2600
- Intel® X710 with dual 100/1000/10000 MBit/s
- Tempo Semiconductor 92HD68D
- 4x USB 3.1 Gen 1 (rear I/O, Type-A), 2x USB 3.1 Gen 1 (by header), 1x RS232 (rear I/O, DB9 connector)
- 6x SATA III Interface (up to 6GBit/s), NCQ, AHCI, Intel VROC SATA RAID 0/1/5/10
- 2x M.2 2280/2242 (Key-M, PCIe/NVMe Gen5 x4 SSD modules), Intel VMD NVMe RAID 0/1 (license required)
- 3x 16 lanes Gen5, 2x 8 lanes Gen5 (“closed slot”)
- TPM V2.0, Discrete, Infineon SLM 9670AQ2.0
- Linux x86_64, Windows Server 2022
- Provozní teplota: 0 °C - 60 °C
Využití:
Sever, AI computing, 24/7
Parametry
| Market: | Sever motherboard |
| Form Factor: | ATX |
| Power Input: | ATX (Multirail) 24- pin, 2x 8-pin, 1x 6-pin sockets |
| Processor: | Intel® 4th/5th Generation Xeon® scalable processor |
| PCIe/mPCIe/PCI: | 3x 16 lanes Gen5, 2x 8 lanes Gen5 (“closed slot”), 2x M.2 2280/2242 (Key-M, PCIe/NVMe Gen5 x4 SSD modules) |
| LAN/USB/COM: | 4x USB 3.1 Gen 1 (rear I/O, Type-A), 2x USB 3.1 Gen 1 (by header), 1x RS232 (rear I/O, DB9 connector) |
| Rozhraní: | 6x SATA III Interface (up to 6GBit/s), NCQ, AHCI, Intel VROC SATA RAID 0/1/5/10 |
| Rozměry: | 243.8 x 304.8 mm |
| Provozní teplota: | 0 ~ +60°C |
| Typ paměti: | up to 768GB, ECC |
| DDR: | DDR5-5600 |
