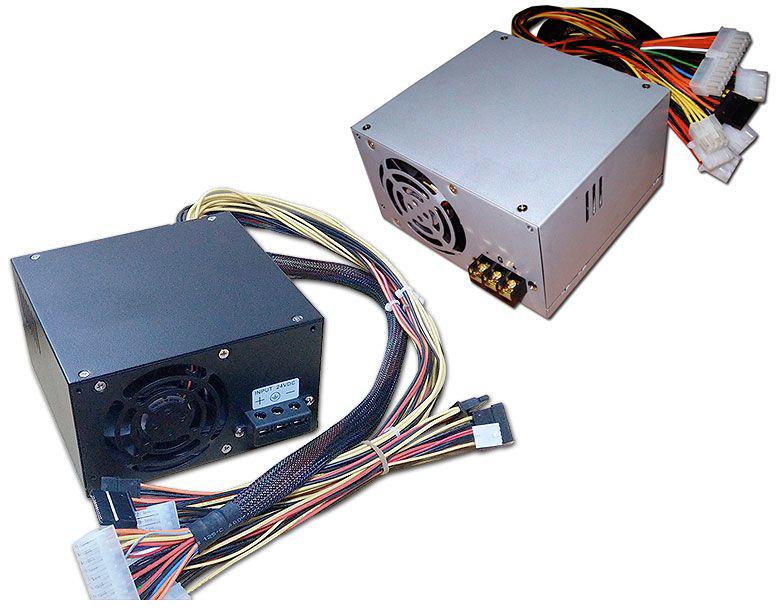

STC-12400
kat. č.: STC-12400
Meet IEC60950-1, EN60950-1
EMC Standart: EN55032:2015/AC:2016, CISPR32:2015, EN6100-3-2:2014, EN6100-3-3:2013, EN55024:2010 +A1:2015
Odkazy
Dostupnost:
na dotaz
Popis produktu
- Cooling: Forced Air-cooling, 80x80x25 mm Fan x 1 pcs
- Fan Type: DC type, 2 x Ball Bearing, 4000 r.p.m., with Fan Control Card
- Operating Temperature: -20°C ~ 60°C
- Input connector type: 50A/300V UL Approved Gold Plated Brass 1.2t/3-Pin Terminal
- Efficiency 65% typical @12V DC Full Load
- Standard Output Cable Length: 550 mm
Parametry
| Power Input: | +-12V DC |
| Provozní teplota: | -20°C ~ +60°C |
| MTBF: | >90 000 hours @max. Load, 12V DC & 25°C ambient |
| Výkon: | 400W continuous |
