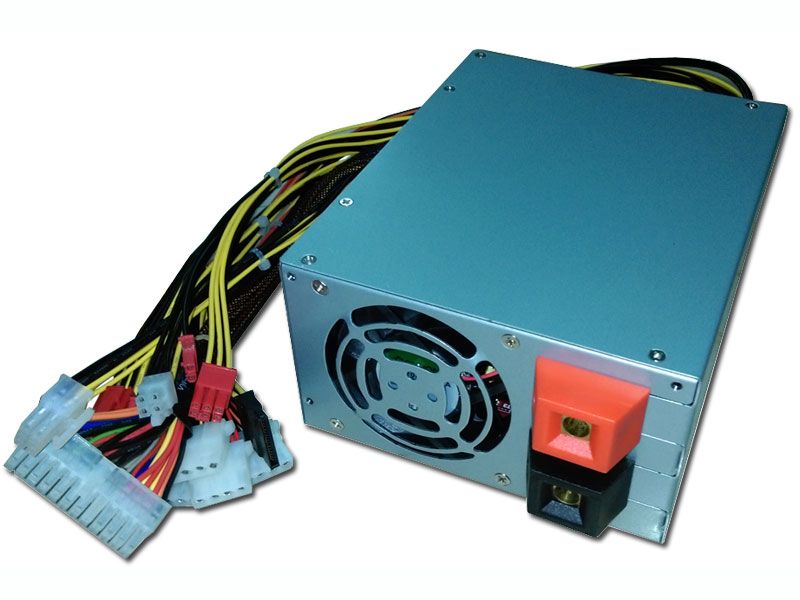

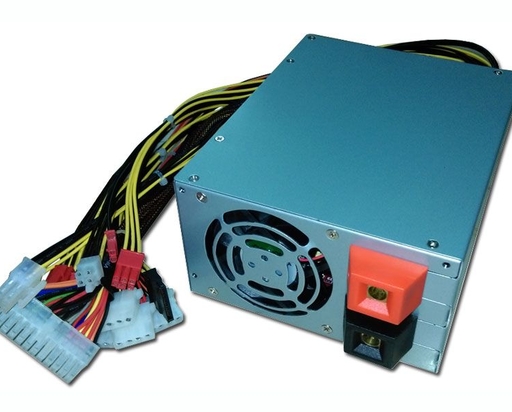

STC-24900
kat. č.: STC-24900
Meet IEC60950-1, EN60950-1
EMC Standart: EN55032:2015/AC:2016, CISPR32:2015, EN6100-3-2:2014, EN6100-3-3:2013, EN55024:2010 +A1:2015
Výrobce
Odkazy
Dostupnost:
na dotaz
Poptávka
Popis produktu
- Input: 24V DC/ 900W ATX Form Factor
- Cooling: Forced Air-cooling, 80x80x25 mm Fan x 1 pc
- Fan Type: DC type, 2 x Ball Bearing, 4900 r.p.m.
- Fan Noise Level: 70dBA @ Full Load
- Operating Temperature: 0°C ~ +50°C
- Input connector type: 200A/300V UL Approved Gold Plated Brass 2 Pin 12.5mm Screw Terminal
- Efficiency 75% typical @24V DC Full Load
- Standard Output Cable Length: 550 mm
Parametry
| Power Input: | +-24V DC |
| Provozní teplota: | 0°C ~ +50°C |
| MTBF: | >90 000 hours @max. Load, 24V DC & 25°C ambient |
| Výkon: | 900W continuous |
